Indoor & Outdoor Infrastructure / Street Lights
3 Panel

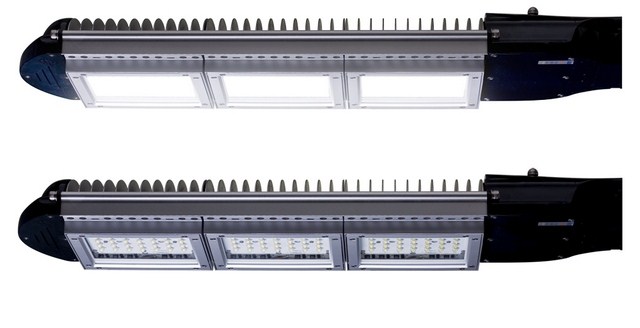

Product Photo (click to zoom)

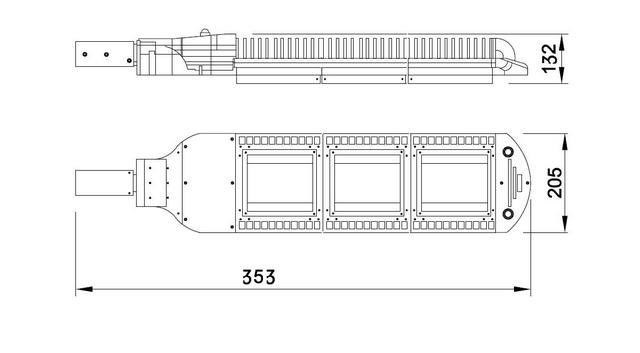

Product Diagram (click to zoom)
Applications
- Road lighting
- Tunnels
- Outdoor
- Warehouse/ Highbay
Specifications
| External Driver Required | Not Required |
| Dimmable | No |
| Operating Voltage | 100-240V AC |
| Materials | Aluminum |
| Lighting Angles | 130° x 80° |
| IP Rating | IP65 |
| Power Factor | > 0.95 |
| Rated Life | 50,000 hours |
| CRI | >75 |
| Weight | 7500 grams |
| Measurements | 953x205x132mm |
Power Configurations
| Power Consumption | 109W |
| LED Configuration | 3 Panels with 28 LEDs per panel |
| Chip Manufacturer | Bridgelux |
| Colour/Brightness* | Warm White - 5712lm Cool White - 7140lm |
*Other colours and customisations available. Please contact us for details.
