Eco - Small (300x300mm)

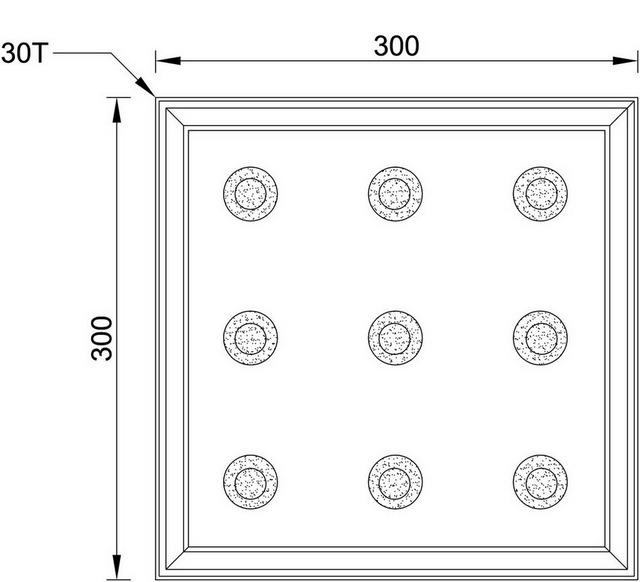

Product Diagram (click to zoom)
 -tech Drawing.jpg)
Applications
- Indoors
- Product Displays
- T Bar Ceiling and Surface Mountable
- Refrigeration Units
Specifications
| External Driver Required | Yes |
| Driver Supplied | Yes |
| Dimmable | No |
| Operating Voltage | 110V AC, 240V AC |
| Materials | Aluminum, PVC/Acrylic |
| Lighting Angles | 120° |
| IP Rating | IP22 |
| Power Factor | > 0.95 |
| Rated Life | >35,000 hours |
| CRI | 70-80 |
| Weight | 1950 grams |
| Measurements | 300x300x30mm |
Power Configurations
| Power Consumption | 12W |
| LED Configuration | 12x1W |
| Chip Manufacturer | Edison |
| Colour/Brightness* | Warm White - 900lm Cool White - 1100lm |
*Other colours and customisations available.
Please contact us for details.
